Tutorial 3A: Step 1 Normalize the Data


Normalize the Data

1. If the Spinal_cord dataset in the Experiments navigator is not already highlighted, click it.

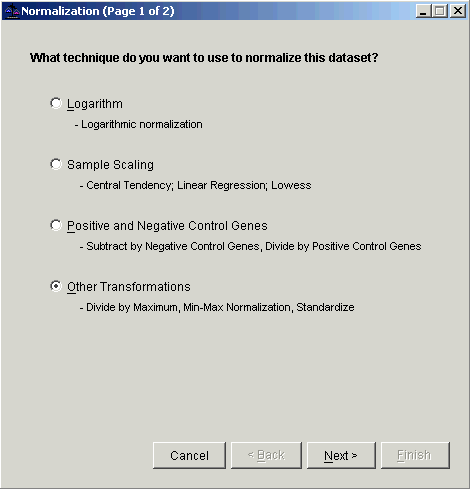

2. Click the Normalize toolbar icon , or select Normalize from the Data menu, or right-click the item and select Normalize from the shortcut menu. The first Normalization parameters dialog is displayed.

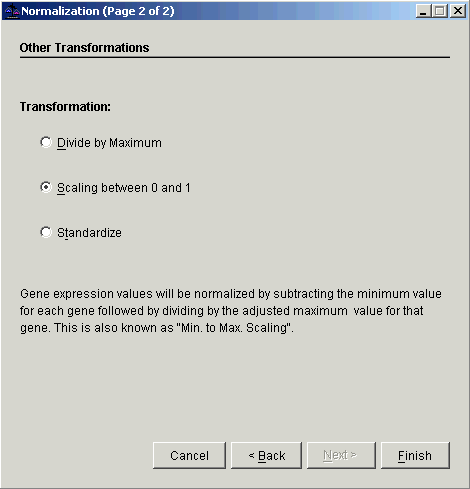

3. Double-click the Other Transformations radio button, or click it and click Next. The second Normalization dialog is displayed.

4. Double-click the Scaling between 0 and 1 radio button, or click it and click Finish. The Experiment Progress dialog is displayed.

The dialog is dynamically updated as the normalization operation is performed. Upon successful completion, a new Norm: Scaled min to max dataset is added to the Experiments navigator under the original dataset.
